Full Delete Kit (DPF/DEF/EGR) w/ EFI Live AutoCal V3 | Ram Cummins 6.7L | 2019-2021
Price range: $1,722 through $2,270
Description

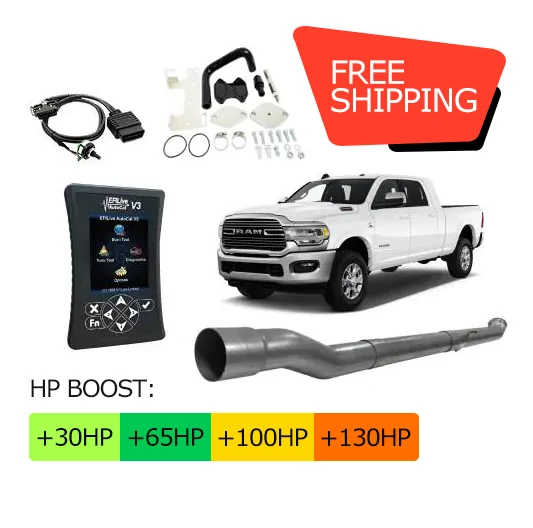

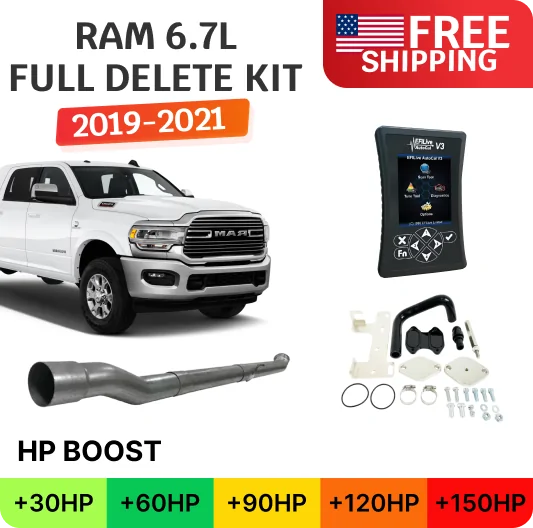

What’s Included
| Component | Description |
| EFI Live AutoCal V3 | Vehicle-specific tuning device used to load the supplied custom engine calibration through the OBD port. It supports SOTF tuning, diagnostics, data logging, and tune-file updates. |
| Custom Tune Files | Files are prepared for the specific truck configuration rather than using one universal calibration. The package includes the engine tune required for the modified DPF, DEF/SCR, and EGR systems. |
| EGR Delete Kit | Includes the components required to remove the factory EGR valve and cooler, reducing exhaust-gas recirculation and soot entering the intake. |
| Exhaust Option | Choose a 4-inch Exhaust System, 5-inch Exhaust System, or Delete Pipe to replace the restrictive factory aftertreatment section. |
| Muffler Option | Select No Muffler for a more aggressive exhaust note or With Muffler to reduce sound and drone. |
| Optional TCM Calibration | Available configurations cover engine-only tuning or compatible 68RFE and AISIN transmission setups. |
The live product page confirms EFI Live, EGR valve/cooler removal, and selectable exhaust hardware for 2019-2021 pickups.
Vehicle Compatibility
This 2019-2021 RAM 2500 & 3500 delete kit is built for late-model Ram heavy-duty Pickup trucks:
- Model years: 2019, 2020, 2021
- Make: Ram / Dodge
- Models: 2500 and 3500
- Engine: 6.7L Cummins diesel
- Body style: Pickup
- Transmissions: Select the configuration that matches the truck, including applicable 68RFE or AISIN automatic transmission
- Not for: Cab & Chassis models, which require different exhaust routing and tuning
DieselBro lists the package specifically for 2019-2021 Ram 2500/3500 6.7L Cummins pickups.
How work?
The 2019, 2020, 2021 6.7 Cummins delete kit w/ EFI Live AutoCal V3 tuner combines physical emissions-system removal with vehicle-specific engine tuning. The selected pipe or complete exhaust replaces the factory DPF and DEF/SCR aftertreatment section, while the EGR kit removes the valve and cooler. EFI Live then loads the matching calibration so the engine no longer commands factory regeneration or monitors the removed emission components. The result is a complete All-in-One bundle that reduces exhaust restriction and soot recirculation while providing selectable performance settings.
Features
A key feature of this 6.7 RAM Cummins delete kit is custom EFI Live tuning rather than a generic preloaded file. AutoCal V3 acts as the delivery and diagnostic device, while the actual tune is prepared around the truck’s year, engine, transmission, and configuration.
Pickup applications support SOTF power changes, allowing the driver to switch between supported levels without performing a complete ECM reflash each time. Optional transmission tuning can also match the engine upgrade to compatible 68RFE or AISIN applications.
The standard package does not list a CCV modification among the supplied parts, so CCV upgrades should be treated separately.
Tuning & Settings
The 6.7 Cummins delete kit has two confirmed tuning configurations.
| Configuration | Available Power Levels |
| Engine Tune / No TCM | Stock / +30 / +65 / +100 / +130 HP |
| With Supported TCM Tuning | +30 / +60 / +90 / +120 / +150 HP |
These supplier-specific level sets are both confirmed in the current technical database and should not be merged into one generic five-level range.
| Characteristic | Typical Result |
| Fuel Economy | Approximately 5-10% potential improvement under comparable driving conditions |
| Power | Up to +130 HP without TCM or +150 HP in the supported TCM configuration |
| Torque / Response | Stronger usable torque and improved throttle response depending on selected tune |
| Exhaust Flow | Reduced restriction after removal of the factory DPF/DEF aftertreatment |
| Regeneration | Factory DPF regeneration is no longer commanded with the correct hardware and tune |
| Towing | Improved response under load; factory towing and axle ratings remain unchanged |
A 5-10% economy improvement is also the published estimate for this matching EFI Live package, but actual efficiency depends on tune level, tires, gearing, payload, maintenance, and driving style.
Optional Add-Ons
- No TCM Tune – engine calibration only; use when transmission tuning is not required.
- 68RFE TCM Tune – transmission-specific calibration for compatible 68RFE trucks.
- AISIN TCM Tune – selectable transmission calibration for compatible AISIN-equipped trucks.
- 4-Inch Exhaust System – high-flow replacement system with a more moderate exhaust size and sound.
- 5-Inch Exhaust System – larger-diameter option with a deeper, more aggressive tone.
- Delete Pipe – replaces the factory aftertreatment section while retaining more of the original exhaust.
- With Muffler / No Muffler – choose quieter operation or a more direct exhaust sound.
The product’s stored variants include combinations of None, 68RFE and AISIN with all three exhaust choices and both muffler configurations.
Key Benefits
Vehicle-Specific EFI Live Tuning – calibration is prepared for the actual truck rather than supplied as one universal file.
SOTF Power Control – supported Pickup tuning provides multiple selectable performance settings.
Transmission Options – compatible 68RFE and AISIN configurations allow the engine and transmission calibration to be matched.
Reduced Exhaust Restriction – removal of the DPF/DEF aftertreatment provides a more direct exhaust path and can improve boost response.
Complete Hardware Package – tuner, custom files, EGR components, and selected exhaust parts are combined into one package.
Installation Information
Installation instructions are available with the product. A mechanically experienced owner can complete the hardware work using metric sockets and wrenches, extensions, penetrating oil, coolant drain equipment, an exhaust sensor socket, torque wrench, and a lift or properly rated jack stands.
Prepare the correct EFI Live calibration before removing the factory emissions hardware. EFI Live setup requires a Windows computer for file transfer and device configuration. An experienced installer should allow about 3-5 hours for a full exhaust, EGR removal, and tuning installation; a simpler Delete Pipe configuration can take less.
Once AutoCal is configured and the tune file is loaded, EFI Live states that vehicle read/flash operations can take roughly 30 seconds to 7 minutes, depending on the vehicle. Additional time is required for initial software setup and tune-file preparation.
No More Emissions Codes
Correct hardware removal and matching EFI Live tuning prevent supported warnings and derate requests caused specifically by the removed DPF, DEF/SCR, and EGR systems. Normal diagnostics remain available for unrelated engine, fuel, turbo, transmission, wiring, and sensor problems.
Common applicable code families include:
- DPF: P2002, P242F, P2452, P2453, P2458, P2459, P2463, P246C
- EGR: P0401, P0402, P0404, P0405, P0406
- DEF/SCR: P203B, P204F, P205B, P207F, P208A, P20B9, P20BA, P20EE, P229F, P249D
Exact code coverage depends on the vehicle-specific calibration supplied for the truck.
FAQ
The best configuration depends on the truck, but the delete kit for 6.7 Cummins 2019, 2020, 2021 combines vehicle-specific EFI Live tuning, EGR hardware, exhaust choices, and applicable transmission options in one package. That reduces the need to source and match major components separately.
EFI Live AutoCal V3 supports custom vehicle-specific tune delivery, SOTF operation, data logging, diagnostic functions, and future tune-file revisions from the calibration provider. It is a tuning interface rather than a generic one-file-fits-all device.
Yes. Engine-only configurations support levels through +130 HP, while supported TCM configurations can provide settings through +150 HP. Actual output varies with the selected tune and the mechanical condition of the truck.
A properly maintained truck may see around 5-10% better fuel economy under comparable driving conditions after reducing exhaust restriction and eliminating active regeneration. Aggressive tuning, towing, tire size, idle time, and driving style can reduce or eliminate that gain.
A capable DIY installer with normal diesel mechanical experience can complete the project. Exhaust work is relatively straightforward, while EGR cooler removal, coolant routing, EFI Live setup, and optional transmission tuning require more care. If those procedures are unfamiliar, installation by a diesel performance shop is recommended.
