Hondata Map Sensors (4 Bar or 7 Bar Options)

Description

Hondata Map Sensors (4 Bar or 7 Bar Options)

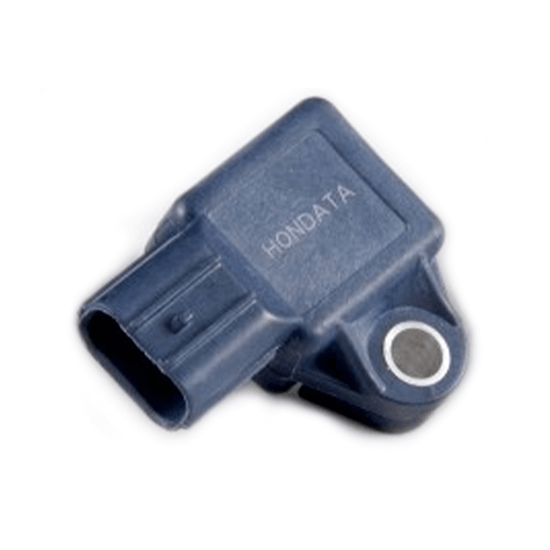

The Hondata MAP sensor is a plug-compatible replacement for the Honda and Acura factory MAP sensor. It is a direct replacement for the B, D, H, F, J, and K-series Honda engines. This plug-in sensor takes less than 60 seconds to install and eliminates the risk of sensor damage that often occurs when attempting to wire in other types of MAP sensors.

It’s also worth noting that the 1.5 Turbo Civic Si requires two of these sensors.

Applications

• 4 Bar Map (B, D, H, F-Series and 00-05 S2000)
• 4 Bar Map (2006+ S2000, R18, 2012 Civic Si, ILX, TSX, CRZ) (The 1.5 Turbo Civic Si requires two of these sensors.)
• 4 Bar Map (K-series & 07/08 Fit)
• 7 Bar Map (B, D, H, F-Series and 00-05 S2000)
• 7 Bar Map (K-series 02-06 RSX, 06-11 Civic Si, 04-08 TSX, 07-08 Fit, 04-08 TL, 03-07 Accord & 07/08 Fit)

Important Note for Automatic Transmissions

Automatic transmission computers for the 2009-2010 TSX, 2006-2011 R18 Civic, any CVT CRZ, and Asian RRH-based Civics share the MAP signal with the fuel injection computer. If you have an automatic transmission and change the MAP sensor, then the AT computer will not work correctly. You must retain the stock MAP sensor with ATs.

If you have questions about the product or its installation, contact us.
