Full Delete Kit (DPF/DEF/EGR) | GM/Chevy Duramax 6.6L LBZ | 2006-2007

Description

LBZ Duramax Delete Kit | Boost Power and Reliability

The 2006-2007 LBZ delete kit combines EGR removal hardware, custom EFI Live AutoCal V3 tuning, and a selectable 4″ or 5″ performance exhaust system for the GM/Chevy 6.6L Duramax. Because the LBZ platform was not factory-equipped with a diesel particulate filter, DEF injection, or an SCR system, this bundle focuses on EGR removal, exhaust flow, ECM calibration, and optional transmission tuning. Customers can select an ECM-only tuning package or add TCM tuning for supported Allison transmission applications. This complete package is intended for off road and competition use where permitted.

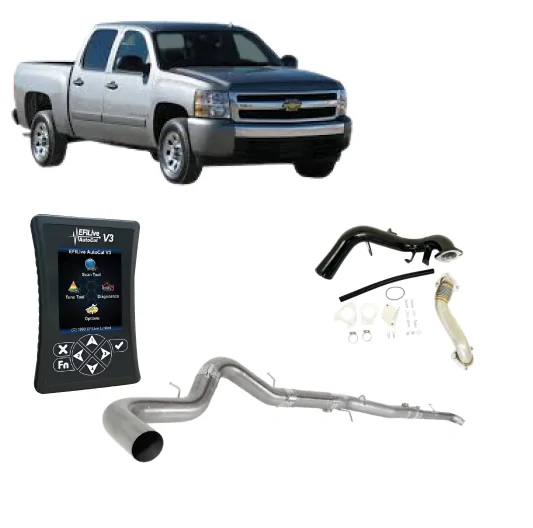

What’s Included

• EFI Live AutoCal V3 – Supplied as the interface used to read the stock file, flash the custom ECM calibration, collect diagnostic data, and return the truck to the saved stock file when required. The device is shipped without a universal preloaded tune and is configured after the vehicle information is submitted.
  • Custom ECM Tune File – Prepared for the complete VIN, year, make, model, engine, transmission, transfer case, fuel tank configuration, tire size, and additional modifications. One truck requires one tuning file and the corresponding available VIN license.
• SOTF/DSP5 Switch – Provides four or five switchable tune positions when the supplied calibration supports SOTF. The exact number of positions depends on the tuning provider and selected package.
• EGR Delete Hardware – Includes the parts required to address the factory EGR valve and cooler connections, reducing exhaust-gas recirculation and soot contamination.
• 4″ or 5″ Performance Exhaust System – Provides a less restrictive exhaust path with a choice of pipe diameter and exhaust sound. This is a performance exhaust system rather than a DPF delete pipe because the LBZ was not equipped with a factory DPF.
• Muffler Configuration – Choose a muffled system for reduced sound or a no-muffler configuration for a louder exhaust note.
• Optional TCM Tune File – Available for supported Allison automatic transmission applications. The file is loaded from a Windows laptop through the EFI Live AutoCal V3 using the Cal Flash function.

The 2006, 2007 LBZ Duramax delete kit combines custom tuning, application-specific hardware, exhaust parts, and optional transmission calibration in one package.

Vehicle Compatibility

Ensure your vehicle matches the year, engine, model, and body style before ordering.

How It Works

The Duramax LBZ full delete kit addresses the EGR system, exhaust flow, ECM calibration, and, when selected, transmission calibration. The EGR hardware removes or blocks exhaust-gas recirculation, helping reduce the amount of soot returned to the intake system. The selected 4″ or 5″ exhaust replaces the applicable factory exhaust sections and provides a less restrictive flow path. EFI Live AutoCal V3 is used to save the stock file, flash the custom ECM tune, and communicate vehicle data to the tuning provider.

When the TCM tuning variation is selected, the ECM is flashed first. The ECM file is then unlinked from the original tuning provider, the device is linked to the transmission-tuning provider, and the TCM file is loaded from a Windows laptop through AutoCal V3 using Cal Flash. The AutoCal functions as a pass-through interface during the TCM flash.

Features

This All-in-One bundle is designed specifically for 2006-2007 GM and Chevy pickup trucks equipped with the 6.6L LBZ Duramax. EFI Live AutoCal V3 is not a universal preloaded tuner: the custom files are prepared after the customer submits the complete vehicle information. The system supports SOTF tuning through the supplied switch, vehicle-specific ECM files, return-to-stock functionality, additional tune files for other trucks, and optional TCM tuning. Customers can also select the exhaust diameter and muffler configuration that best match the intended sound and performance goals.

Tune preparation and tuner configuration normally require approximately 2-5 business days after all required vehicle information has been received.

Tuning & Settings

The available power levels depend on whether the package is ordered with or without TCM tuning.

The horsepower figures below refer to the ECM engine calibration. The TCM tune does not independently add horsepower; it changes transmission strategy and is paired with a different ECM tuning package.

Important tuning notes

• The ECM-only option uses levels: Stock, +30, +65, +100, and +130 HP.
• The variation with TCM tuning uses ECM levels: 0, +30, +80, +120, and +150 HP.
• The TCM file modifies supported transmission behavior; it does not create a separate horsepower increase.
• SOTF requires the supplied switch, compatible custom calibration, and correct wiring.
• SOTF is not supported on vehicles with a manual transfer case.
• AutoCal V3 does not need to remain connected after flashing.
• A stock file must be created and saved before the custom tune is installed.
• Additional trucks require additional tuning files and available VIN licenses.

Optional Add-Ons

• TCM Tuning – Adds a custom transmission calibration for supported Allison automatic applications. The TCM file is flashed from a Windows laptop through the EFI Live AutoCal V3 using the Cal Flash function.
• 5″ Exhaust Upgrade – Provides a larger pipe diameter and deeper exhaust sound than the 4″ configuration.
• Muffler Option – Reduces exhaust volume and drone compared with the straight-through configuration.
• No-Muffler Option – Provides the loudest exhaust configuration and removes the muffler restriction.

Key Benefits

• Vehicle-Specific Custom Tuning – Files are prepared from the submitted VIN and truck configuration rather than supplied as universal preloaded files.
• Two Tuning Configurations – Choose ECM-only tuning or an ECM and TCM package with transmission calibration.
• Switchable Power Levels – Supported SOTF packages provide four or five selectable tune positions through the supplied switch.
• Selectable Exhaust Hardware – Choose 4″ or 5″ piping and a muffled or no-muffler setup.
• Return-to-Stock Capability – The saved stock file can be restored through the AutoCal menu when required.
• Expandable Device Use – Additional supported trucks can be added by purchasing the required tuning file and VIN license.

Installation Information

The package includes instructions for the mechanical hardware and EFI Live setup. Mechanical installation requires experience with diesel exhaust components, EGR hardware, cooling-system connections, electrical connectors, and safe vehicle lifting. Total installation time depends on corrosion, cab and bed configuration, exhaust selection, and access to the EGR cooler.

EFI Live setup requires a compatible Windows computer, EFI Live software, USB connection, stable vehicle battery voltage, and the custom files supplied by the tuning provider. File preparation and device configuration normally take 2-5 business days after the required vehicle information has been submitted.

ECM-only tuning procedure

1. Install the EFI Live software and connect AutoCal V3 to the computer.
2. Read and save the stock vehicle file before installing the custom tune.
3. Copy the supplied custom file to the device.
4. Flash the selected ECM calibration.
5. Confirm that the truck starts and operates correctly.
6. Disconnect the AutoCal after programming if no diagnostic logging is required.

ECM and TCM tuning procedure

1. Flash the ECM file supplied with the package.
2. Unlink the ECM file or device from the original tuning provider using the required unlink code.
3. Link the AutoCal to the TCM tuning provider.
4. Load the TCM file from the Windows laptop.
5. Open the file and use Cal Flash to program the transmission controller through the AutoCal.
6. Follow the provider’s instructions and maintain stable battery voltage during the flash.

Recommended equipment

• Windows laptop.
• Configured EFI Live AutoCal V3.
• Supplied ECM and optional TCM files.
• Stable internet connection for file transfer and support.
• Battery charger or maintainer.
• Metric sockets and wrenches.
• Torque wrench.
• Penetrating lubricant.
• Safe lifting equipment and jack stands.
• Cooling-system tools and drain pan.

Professional installation is recommended without experience in EGR hardware removal, exhaust fitment, coolant service, ECM flashing, or TCM programming.

No More Emissions Codes

After the EGR hardware and vehicle-specific ECM calibration are installed correctly, the tune is designed to prevent supported EGR monitoring codes related to the specified EGR changes. The 2006-2007 LBZ was not equipped with a factory DPF, DEF system, or SCR catalyst, so DPF- and DEF-related diagnostic codes are not applicable.

Exact code coverage depends on the ECM operating system and supplied custom calibration. Tuning does not repair damaged wiring, failed actuators, coolant leaks, communication faults, turbocharger problems, injector faults, or unrelated engine and transmission failures.
