Full-Race 2011-2014 Ford F-150 3.5L EcoBoost Oil Cooler Kit

The old saying “Oil is the lifeblood of your engine” is as true today as ever. Modern high-performance production engines are critically dependant upon cool oil to avoid efficiency and power robbing wear. The OEM cooling system does a great job – but it can be overtaxed, especially on high performance applications, off-road racing, or towing a heavy load up steep hills. When your engine coolant gets hot, the oil subsequently overheats also. Hot oil degrades and breaks down, losing viscosity and lubricity. Using a high efficiency Setrab Air-to-Oil heat exchanger core, this kit can remove 30,000-35,000+ btu/hr from Ford Ecoboost 3.5L V6’s and 5.0L V8’s. Whether you tow or race off-road, we realize many truck owners use their vehicles for short trips as well as heavy hauls. So, we integrated a thermostat into the sandwhich filter housing. Similar to the thermostat in your water-cooling system, this thermostat will not open until the engine reaches full operating temp. Its equally important to not ‘over-cool’ the oil upon startup in winter time for cold low-load driving as it is to not overheat the oil during hot high-load driving!

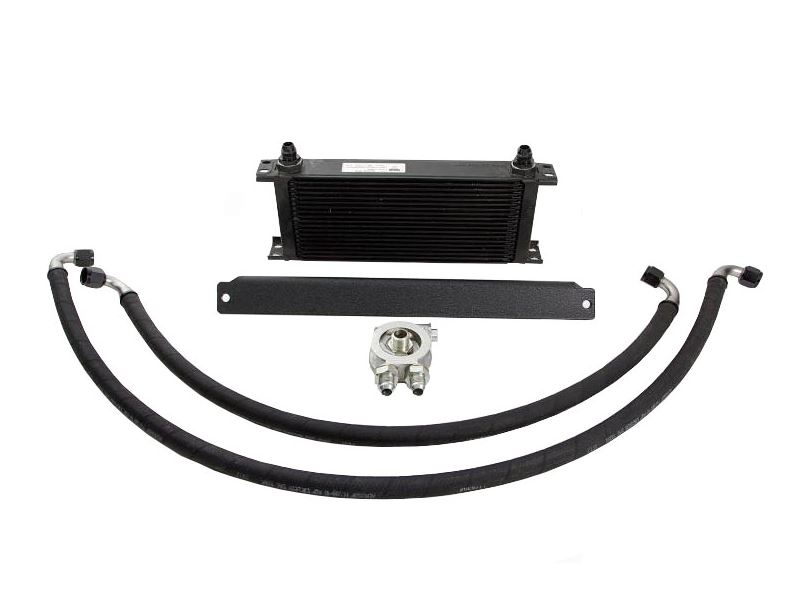

Features:

• Setrab oil cooler core (fully brazed construction with black epoxy finish)
• Thermostat controlled oil filter sandwhich-adapter
• -10 smooth bore hose with 5 ply composite construction, rated to 400-degrees F, burst pressure >1000psi
• Black powdercoated mounting bracket for F150 front bumper
• Installation kit includes -AN Fittings and bolts/washers/nuts

Fitment:

• Ford F-150 3.5L V6 2011-2014
• Ford F-150 5.0L V8 2011-2014

NOTE: This requires a relocated Front-Mount Intercooler to provide the open space in the front grille.

Installation Guide
