ECM Unlock Tuner | Ford Powerstroke 6.7L | 2020-2025

ECM Unlock Tuner | Ford Powerstroke 6.7L | 2020-2025

Ready to ship
SKU: 22393
For off-road and race use only

Price range: $1,099 through $2,349

Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

The GDP Commander is a Ford-specific ECM programming device for supported 2020–2025 Ford Super Duty trucks with the 6.7L Powerstroke diesel engine. It uses a vehicle-specific calibration prepared from the truck and device information rather than a universal preloaded tune. The current standard configuration retains stock power with 0 added HP and does not use SOTF or multiple performance levels.

What’s Included

Component Description

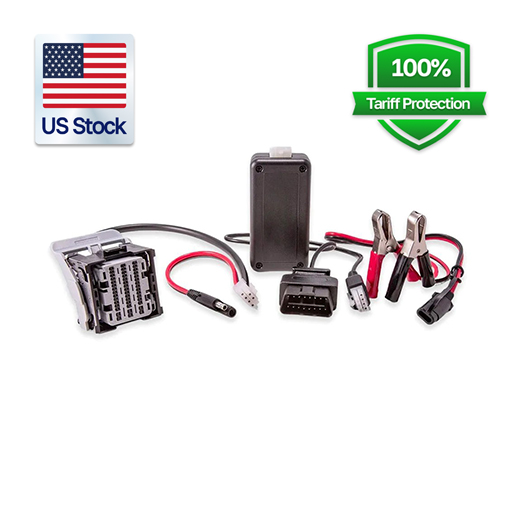

GDP Commander Device Ford-specific programming device used to install the appropriate ECM calibration on supported 6.7L Powerstroke trucks.
Vehicle-Specific Calibration File Custom file prepared for the specific vehicle using the required VIN, module serial numbers, cable information, and vehicle modifications. The current standard calibration retains stock power.
Connection Hardware Required connection hardware allows the Commander device to communicate with the supported Ford system during programming.
Tuning Instructions Instructions explain the setup, required vehicle information, file preparation, and ECM programming workflow.

Vehicle Compatibility

This tuner for 6.7 Powerstroke supports the following 6.7L Powerstroke applications:

Specification Fitment
Years 2020, 2021, 2022, 2023, 2024, 2025
Make Ford
Model F-250 / F-350 / F-450 / F-550
Engine 6.7L Powerstroke V8
Body Style Pickup / Cab & Chassis
Fuel Type Diesel

Compatibility depends on the correct vehicle-specific calibration. The VIN, ECM Serial, TCM Serial, Cable Serial, and relevant vehicle modifications must be supplied for the tuning workflow. Both the ECM Serial and TCM Serial must contain 32 characters.

How work?

The 2020, 2021, 2022, 2023, 2024, 2025 Ford 6.7 Powerstroke tuner uses the GDP Commander to program a calibration prepared specifically for the truck. Required vehicle and device data are collected first, including the VIN and module serial information, and the corresponding calibration file is then used with the Commander to program the ECM. Unlike programmers with generic preloaded power tunes, the Commander depends on the correct file for the individual vehicle. The current standard offering retains factory power rather than adding an aftermarket horsepower level.

Features

The 2020-2025 6.7 Powerstroke ECM delete tool is designed around vehicle-specific ECM programming rather than universal tune files. It supports Ford Super Duty pickup and Cab & Chassis applications across the 2020–2025 model years and uses the truck’s exact data to match the calibration to its configuration.

The current package provides a fixed stock-power calibration. It does not use SOTF, live gauges, wireless monitoring, or multiple selectable performance tunes. This keeps the device focused on the required ECM programming workflow instead of functioning as a general-purpose diesel monitor or diagnostic tool.

Tuning & Settings

The current standard configuration uses one calibration:

Calibration Added Power Configuration
Stock Power 0 HP Vehicle-specific fixed calibration

The supplied tune maintains the stock horsepower level rather than adding multiple aftermarket HP stages. It is not a high-boost performance tune and does not provide selectable power levels.

Tuning Function Current Configuration
Programming Method ECM calibration flashing
Tune Type Vehicle-specific fixed calibration
Power Level Stock Power
Added Horsepower 0 HP
Vehicle Data Required VIN, ECM Serial, TCM Serial, Cable Serial, vehicle modifications
ECM Serial Requirement 32 characters
TCM Serial Requirement 32 characters
Supported Body Configurations Pickup and Cab & Chassis

The Commander itself handles the electronic programming portion. Physical DPF, DEF, EGR, exhaust, or other off-road hardware must match the calibration prepared for the truck.

Key Benefits

Vehicle-Specific Programming
The calibration is prepared around the exact Ford truck and module information instead of using one generic file across every supported vehicle.

2020–2025 Super Duty Coverage
One product family supports compatible F-250, F-350, F-450, and F-550 6.7L Powerstroke applications across six model years.

Pickup and Cab & Chassis Support
The programming platform covers supported pickup and duty-focused Cab & Chassis configurations when the correct vehicle file is supplied.

Purpose-Built Ford Platform
The tuner for deleted 6.7 Powerstroke 2020-2025 uses a Ford-specific programming workflow and requires a calibration matched to the vehicle’s actual hardware configuration.

Stock-Power Configuration
The current standard package keeps power at the stock level rather than adding aggressive horsepower stages.

Installation Information

A stable internet connection, a compatible Windows 10 or newer computer, the GDP Commander and the required calibration file are needed to complete the programming workflow. Before tuning, collect the VIN, ECM Serial, TCM Serial, Cable Serial, and requested information about the truck and installed parts.

A DPF delete tuner 6.7 Powerstroke application must use a calibration that matches the vehicle’s actual DPF, DEF, EGR, and exhaust hardware configuration. The electronic tune does not physically remove emissions parts.

The total setup time can vary because the vehicle-specific file must be prepared before programming can be completed. Follow the supplied instructions throughout the process and maintain stable vehicle power while the module is being programmed.

FAQ

The Commander should not be treated as a diagnostic scanner for clearing unrelated dashboard warnings or repairing existing vehicle faults. The calibration must match the truck’s actual system and hardware configuration. Existing mechanical, electrical, or sensor problems should be diagnosed separately.

Removing emissions hardware while retaining incompatible factory ECM programming can result in diagnostic trouble codes, warning messages, regeneration-related problems, derate conditions, and improper operation. The Ford 6.7 Powerstroke tuner without delete should likewise use a calibration that matches the stock hardware configuration rather than an emissions-off file.

The current standard configuration provides one Stock Power calibration with 0 added HP. It does not include multiple performance stages or SOTF. The focus of the current package is vehicle-specific ECM programming rather than increasing horsepower through selectable tune levels.

Return to stock is not performed directly through the Commander device. Restoring the factory calibration may require an appropriate dealer reflash or ECM replacement, depending on the vehicle and its current programming.

The exact time depends on collecting the required vehicle information, preparation of the correct calibration files, computer setup, and completion of the programming procedure. Because the calibration is vehicle-specific, a fixed universal tuning time should not be assumed.

The Ford 6.7 Powerstroke tuner without delete – and any emissions-off configuration – requires correct programming for the truck’s actual hardware. If you are not comfortable with ECM programming, computer-based tuning software, or related diesel systems, installation can be handled by a qualified diesel technician familiar with Ford Powerstroke electronic programming.
