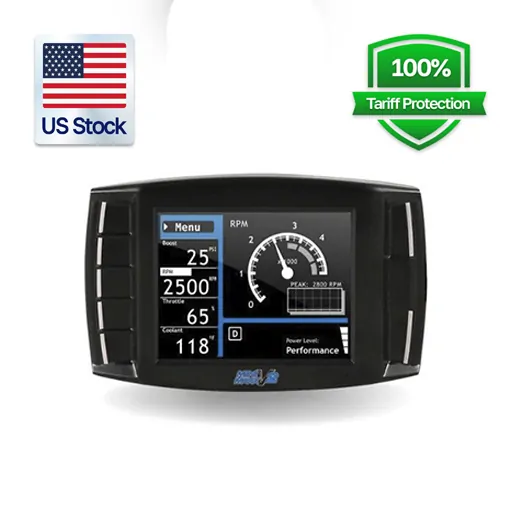

Mini Maxx V2 DPF Delete Tuner | GM/Chevy Duramax LML | 2011-2015

Description

The Mini Maxx V2 is a preloaded diesel programmer for compatible 2011, 2012, 2013, 2014, and early-production 2015 Chevrolet Silverado HD and GMC Sierra HD trucks equipped with the 6.6L Duramax LML engine. It provides the required off-road tuning together with four built-in power settings, live vehicle monitoring, and diagnostic functions.

Unlike a custom-file tuning platform, Mini Maxx V2 comes with its supported calibrations already loaded. The LML is factory-equipped with DPF, DEF/SCR, and EGR emissions systems, and the corresponding off-road calibration is designed around that emissions configuration.

What’s Included

Vehicle Compatibility

• Years: 2011, 2012, 2013, 2014, early 2015
• Make: Chevrolet / GMC
• Engine: 6.6L Duramax LML diesel
• Models: Silverado HD / Sierra HD
• Pickup Models: 2500HD and 3500HD
• Tuner: Mini Maxx V2
• Tune Type: Preloaded menu levels
• Power Levels: 0 / +30 / +65 / +100 HP
• SOTF: No – changing power levels requires reflashing
• TCM Tuning: Not provided for this LML configuration
• Factory Emissions Systems: DPF, DEF/SCR, and EGR
• Application: Off-road configuration

Fitment requires special attention on 2015 trucks. Early-production 2015 LML applications use the earlier V-band exhaust configuration, while late-2015/2015.5 trucks use the later 3-bolt configuration. Verify the production configuration before selecting corresponding exhaust or delete hardware.

How work?

The 2011-2015 GM Duramax LML delete tuner connects to the vehicle through the factory OBD-II port and flashes one of its preloaded calibrations to the ECM. Correct off-road programming changes the applicable DPF, DEF/SCR, and EGR control strategies to match the corresponding modified hardware configuration. Four engine power settings are available, but the LML application does not use true Switch-On-The-Fly operation – selecting another level requires the ECM to be reflashed. The device can remain connected after programming to provide gauges, engine data, and diagnostic functions.

Features

The LML Duramax Mini Maxx V2 tuner combines preloaded programming and vehicle monitoring in one device without requiring custom tune files for the supported configuration. Its four calibrations cover stock-output through +100 HP performance settings.

The tuner can display supported engine parameters and scan or clear supported ECM trouble codes. It also provides an uninstall procedure for restoring the appropriate OEM ECM settings when the truck is returned to its corresponding factory hardware configuration.

One LML-specific limitation is worth noting: the displayed boost value may be inaccurate with the current software on this platform. This affects the boost gauge reading on the tuner rather than the actual turbocharger boost produced by the engine.

Tuning & Settings

The Mini Maxx V2 tuner for LML Duramax provides four preloaded power settings:

The maximum listed increase is +100 HP. Actual vehicle response depends on engine condition, load, tires, supporting modifications, and other operating factors.

Tuning Functions

The Mini Maxx V2 LML delete tuner should therefore not be described as a custom tuning or SOTF platform. Its primary advantage is that the compatible calibrations are already included in the device and selected through the tuner menu.

Key Benefits

Four Preloaded Power Settings
No Power, Tow, Street, and Performance settings provide 0, +30, +65, and +100 HP options without purchasing individual custom tune files.

No Custom File Ordering Required
The supported LML calibrations are already installed on the programmer, simplifying initial setup.

Live Vehicle Monitoring
The device can remain connected after programming and display supported engine operating parameters while the truck is running.

Built-In Diagnostics
Supported diagnostic trouble codes can be scanned and cleared directly through the tuner.

Factory Restore Function
The uninstall procedure allows the corresponding OEM ECM calibration to be restored when the truck is returned to its original hardware configuration.

Installation Information

The DPF delete tuner for LML Duramax 2011-2015 connects to the truck through the OBD-II port. Follow the provided guide and maintain stable battery voltage throughout the programming procedure. Do not disconnect the tuner, interrupt vehicle power, or alter the required ignition sequence while the ECM is being flashed.

For a complete off-road configuration, electronic programming must be coordinated with the applicable DPF, DEF/SCR, EGR, and exhaust hardware changes. The tuner handles the calibration side of the installation; mechanical removal or replacement of emissions and exhaust components requires appropriate tools and experience.

For 2015 vehicles, verify whether the truck uses the early V-band or later 3-bolt exhaust connection before purchasing corresponding hardware.
