H&S Mini Maxx DPF Delete Tuner | Ford Powerstroke 6.7L | 2011-2016

H&S Mini Maxx DPF Delete Tuner | Ford Powerstroke 6.7L | 2011-2016

Ready to ship
SKU: 22951
For off-road and race use only

$689

Ready to ship
Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

What’s Included

Component Description

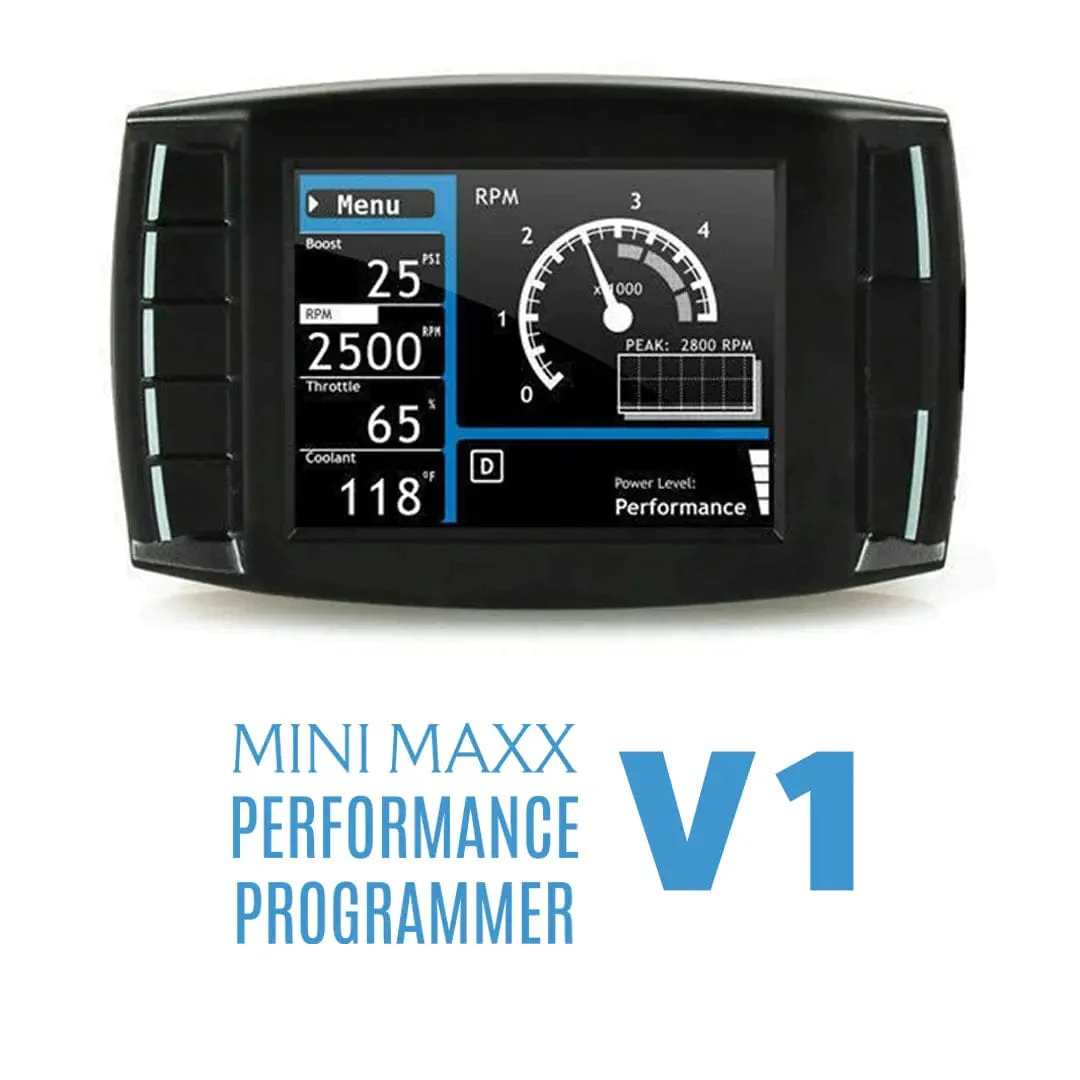

H&S Mini Maxx programmer Handheld device with a built-in screen for programming, diagnostic functions and viewing supported engine readings.
Memory card with tuning files Stores the software and preloaded calibrations used during installation. The file must match the supported vehicle.
OBD-II adapter and connection cable Connect the programmer to the truck for communication, flashing and monitoring.
Power wiring and mounting hardware Provide the connections and mounting arrangement described in the installation guide.
Installation instructions Explain mounting, wiring, vehicle selection and programming.

Physical exhaust and EGR components are separate parts. Select those items according to the truck’s configuration and the calibration you intend to install.

Vehicle Compatibility

  • Make: Ford.
  • Engine: 6.7L Powerstroke turbo diesel.
  • Standard V1 application: 2011, 2012 and 2013.
  • Models: F250 and F350 pickup trucks with the supported configuration.
  • Later model years: For 2014, 2015 and 2016, have the shop verify the specific device and file before ordering.
  • Application: Off-road and competition use with matching hardware and software.

When selecting a 2011-2016 6.7 Powerstroke tuner DPF delete setup, confirm compatibility with the exact model year. A product title covering several years does not make every stored calibration compatible with every truck.

How work?

When choosing a Mini Maxx tuner 6.7 Powerstroke 2011, 2012, 2013, 2014, 2015, 2016, match the programmer and file to the vehicle before installation. On supported applications, the device connects through OBD-II and writes the selected tune into the engine computer. An emissions-off calibration changes engine management for the configured DPF, EGR and DEF modifications, while power settings adjust performance above the base level. Deleting physical components is a separate mechanical task completed in the sequence specified by the instructions.

Features

The H&S Mini Maxx 6.7 Powerstroke setup combines programming and a dashboard monitor in one device. Its preloaded files allow supported vehicles to be programmed without a separate custom-file preparation stage. The screen provides access to supported readings, including boost, and diagnostic functions help identify trouble codes. Choose the power level before flashing; changing that selection requires another programming cycle.

Tuning & Settings

The following levels apply to supported 2011–2013 Ford 6.7L Pickup calibrations.

Setting Emissions-On: Added Power Emissions-Off: Added Power
Base 0 HP 0 HP
Level 1 +40 HP +50 HP
Level 2 +80 HP +100 HP
Level 3 +120 HP +150 HP

Use emissions-on files with the original system and emissions-off files with the corresponding modified configuration. The base emissions-off setting retains that configuration; it does not restore factory software.

Transmission Consideration Required Action
Vehicle matching Select the file appropriate to the truck’s transmission.
TCM package selection Confirm the transmission-tuning option with the shop before ordering.
Power selection Match the engine setting to drivetrain condition and intended workload.



Additional Function Practical Use
Live monitoring View supported parameters with the head unit connected.
Diagnostics Read codes and clear them after correcting their cause.
Stock restoration Reinstall the original calibration through the device menu.

Added power figures describe calibration levels, rather than guaranteed measured output. Fuel efficiency depends on driving habits, load and vehicle condition. Higher settings cannot increase rated towing or payload capacity.

Key Benefits

Programming and monitoring together
Install the selected file and keep useful vehicle readings accessible on one screen.

Four selectable levels
Supported applications offer a base setting and three added-power choices.

Preloaded calibration access
Begin the programming stage with the appropriate files already on the device.

Diagnostic functions
Read trouble codes to help identify issues before installation and check results after repairs.

Return-to-stock capability
Restore the original software when returning the truck to its factory hardware configuration.

Installation Information

Before installing an H&S Mini Maxx tuner 6.7 Powerstroke 2011-2016 setup, verify the exact vehicle and file combination. Read the supplied instructions, maintain stable battery voltage and resolve existing faults before programming.

Mount the device, connect the adapter and wiring, select the vehicle and choose the power level. Follow every ignition prompt with the engine stopped. Allow time for mounting, wiring, flashing and verification; physical exhaust or EGR work requires additional tools and labor.

Keep the head unit connected for monitoring and dependable access to the selected power setting. Disconnecting it can allow power to return to the base level after driving cycles. Ask the shop about shipping arrangements and assistance before starting the installation.

FAQ

A Mini Maxx tuner for 6.7 Powerstroke can read and clear diagnostic trouble codes. A matching calibration addresses the intended emissions configuration, but mechanical or electrical faults still require repair. Repeated warnings should be diagnosed.

The original software continues to expect the DPF and its related sensors. Removing it without matching tuning can trigger warnings, regeneration problems or reduced-power operation. Complete programming in the required sequence before removing hardware.

Supported 2011–2013 applications offer four levels. Emissions-off settings are 0, +50, +100 and +150 HP; emissions-on settings are 0, +40, +80 and +120 HP.

Yes. Restore the original file through the menu and return the emissions hardware to its factory configuration. Unplugging the device alone does not reinstall stock software.

Preloaded files avoid a separate preparation wait for supported applications. Total time includes mounting, wiring, vehicle selection, flashing and verification. Hardware installation is a separate job.

Yes. Instructions cover connection, operation and programming. Follow the guide for the supplied device and vehicle configuration.

You can follow the guided process with the correct file and stable voltage. Before purchasing a 2011-2016 6.7 Powerstroke H&S Mini Maxx tuner, confirm the model-year application. Seek professional help for unresolved faults or unfamiliar wiring and mechanical work.
