Full Delete Kit (DPF/DEF/EGR) w/ Mini Maxx V2 | Ford Powerstroke 6.4L | 2008-2010

Full Delete Kit (DPF/DEF/EGR) w/ Mini Maxx V2 | Ford Powerstroke 6.4L | 2008-2010

Ready to ship
SKU: 22022
For off-road and race use only

Price range: $1,289 through $1,823

Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

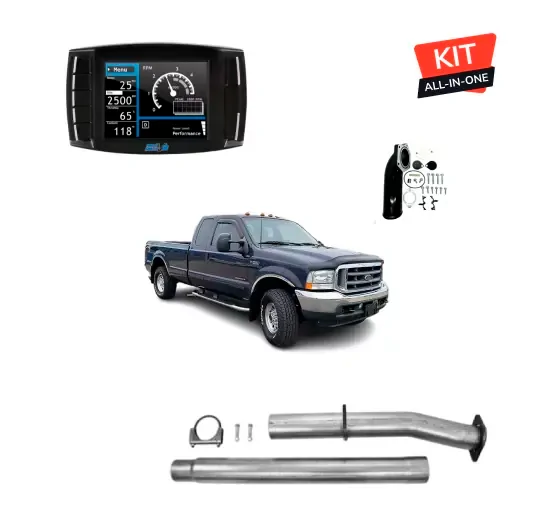

What’s Included

Component Description
Mini Maxx V2 Tuner Preloaded OBD-II tuner used to install the required DPF/EGR calibration. It also provides live engine monitoring, diagnostic functions, and menu-selectable power levels.
EGR Delete Kit Includes block-off plates, coolant-routing components, fasteners, and hardware required for EGR valve and cooler removal.
DPF Delete Pipe or 5-Inch Exhaust Choose the shorter pipe to retain more of the factory exhaust or the complete 5-inch system for a larger, freer-flowing exhaust path.
Muffler Configuration Available with or without a muffler depending on the selected exhaust setup and desired sound level.
Installation Hardware Includes applicable clamps, hangers, fittings, gaskets, and connection parts needed for the selected configuration.

This All-in-One bundle is designed around the actual emissions equipment fitted to the 6.4L engine. These trucks use DPF/CAT and EGR hardware but do not have a factory DEF/SCR system, so no DEF component is removed.

Vehicle Compatibility

This 6.4 Powerstroke delete kit is compatible with:

  • Years: 2008, 2009, 2010
  • Make: Ford
  • Models: F250, F350, F450, F550
  • Series: Super Duty / superduty
  • Engine: 6.4L Powerstroke diesel
  • Body style: Pickup
  • Factory systems addressed: DPF, CAT, EGR
  • Application: Off-road and competition use

Correct fit is important because commercial Cab & Chassis models and previously modified exhaust systems can use different routing or connection points.

How work?

The 2008, 2009, 2010 Ford 6.4 Powerstroke delete kit combines electronic tuning with mechanical DPF and EGR removal. Mini Maxx V2 loads the required tune so the ECM no longer commands normal particulate-filter regeneration or monitors the removed EGR hardware as a factory system. The selected exhaust removes the restrictive filter and CAT section, while the EGR components remove the valve and cooler and provide the required bypass and block-off hardware. Reducing restriction can improve exhaust flow, boost response, fuel efficiency, and overall engine performance.

Features

The Mini Maxx V2 is a preloaded tuner, so a normal installation does not require waiting for a custom VIN-built file. Power modes are selected through the tuner menu rather than true shift-on-the-fly switching.

The package also gives the owner a choice between retaining more of the original exhaust with a Delete Pipe or upgrading to a full 5-inch T409 stainless system. The EGR portion includes solid mechanical components for valve and cooler removal, while regular CCV and engine maintenance remain necessary for reliability.

Tuning & Settings

The 2008-2010 6.4 Powerstroke DPF delete kit uses the following Mini Maxx V2 menu levels:

Tune Setting Power Increase Intended Use
Stock 0 HP Stock-like output with the required calibration
Tow +40 HP Conservative daily and load use
Street +80 HP Stronger throttle and mid-range response
Performance +120 HP Maximum listed Mini Maxx V2 setting



Characteristic Expected Change
Maximum Added Power Up to +120 HP
Fuel Economy Approximately 5–15% potential improvement
EGT Under Comparable Load Approximately 100–200°F potential reduction
DPF Regeneration Eliminated after correct removal and tuning
Exhaust Restriction Reduced after particulate filter and CAT removal
Boost / Throttle Response Improved with freer flow and matching calibration
Typical Full Installation Approximately 3–5 hours on a clean, unmodified pickup

Results vary with tune level, vehicle condition, tires, load, fuel quality, maintenance, and supporting upgrades.

Optional Add-Ons

  • DPF Delete Pipe – replaces the restrictive aftertreatment section while keeping more of the existing exhaust.
  • 5-Inch Exhaust System – larger exhaust upgrade for increased flow and a deeper sound.
  • No Muffler – provides the loudest and least restrictive configuration.
  • With Muffler – reduces exhaust volume and highway drone.

Key Benefits

No Active DPF Regeneration – the DPF delete kit 6.4 Powerstroke configuration removes the particulate filter and corresponding regeneration requirement.

Reduced EGR Soot – removal of the EGR valve and cooler stops exhaust soot from continuously returning to the intake.

Four Power Modes – Mini Maxx V2 provides 0, +40, +80, and +120 HP choices.

Flexible Exhaust Setup – choose a simple pipe or complete 5-inch upgrade depending on sound and performance goals.

Matched Electronic and Mechanical Parts – the tuner, EGR components, exhaust hardware, and required installation pieces are supplied as one package.

Installation Information

A detailed installation guide is provided. An owner with good mechanical skills can complete the work using metric sockets and wrenches, extensions, a torque wrench, penetrating oil, coolant-service tools, an exhaust sensor socket, safe lifting equipment, and a battery charger or maintainer.

Program the Mini Maxx V2 before removing factory DPF or EGR hardware. The tuner connects through the OBD-II port and normally flashes in minutes; stable voltage must be maintained and the programming cycle must not be interrupted.

A complete delete kit for 6.4 Powerstroke installation usually requires about 3–5 hours for an experienced installer. Rusted bolts, seized exhaust joints, EGR cooler access, or previous modifications can extend that time.

No More Emissions Codes

Correct Mini Maxx V2 tuning prevents supported emission warnings, regeneration requests, and reduced-power conditions caused by the removed DPF and EGR components. Normal diagnostics for unrelated engine, turbo, fuel, transmission, wiring, and sensor problems remain active.

Common supported code families include:

  • DPF / Regeneration: P2002, P242F, P2452, P2453, P2458, P2459, P2463
  • EGR: P0401, P0402, P0403, P0404, P0405, P0406, P0409

There are no DEF/SCR code families to disable because the 2008–2010 6.4L platform was not factory-equipped with that system. Exact DTC coverage depends on ECM strategy and installed calibration.

FAQ

The delete kit 6.4 Powerstroke 2008-2010 combines the main electronic and mechanical parts required for this platform in one complete package. Its strongest advantage is that the tuner, EGR hardware, and selected exhaust are designed to work together rather than being sourced separately.

Mini Maxx V2 is a preloaded device with no normal custom-file wait. It provides engine monitoring, diagnostic functions, return-to-stock capability, and four selectable power settings through the tuner menu.

Programming normally takes only several minutes once the tuner is connected and the correct vehicle selection is confirmed. Keep a charger connected and do not disconnect the device or cycle accessories during the flash.

The truck can gain up to +120 HP with the highest listed tune, while reduced exhaust restriction can improve throttle response and efficiency. The removal of normal DPF regeneration and EGR recirculation can also reduce two major sources of heat, soot, and operating interruptions.

An experienced installer should plan around 3–5 hours for the full job. A first-time DIY installation or a truck with corrosion and seized factory hardware may require considerably longer.

Yes. Installation instructions cover the hardware sequence and tuner setup, including the requirement to complete programming before emissions-system removal.

A mechanically experienced owner with proper lifting equipment and coolant-system experience can install the 2008-2010 6.4 Powerstroke DPF delete kit independently. A qualified diesel shop is the better choice if heavy exhaust work, EGR cooler removal, or ECU programming is unfamiliar.
