Full DPF/DEF/EGR Delete Kit | Ford Powerstroke 6.0L | 2003-2007

Full DPF/DEF/EGR Delete Kit | Ford Powerstroke 6.0L | 2003-2007

Ready to ship
SKU: 23049
For off-road and race use only

Price range: $1,657 through $1,905

Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

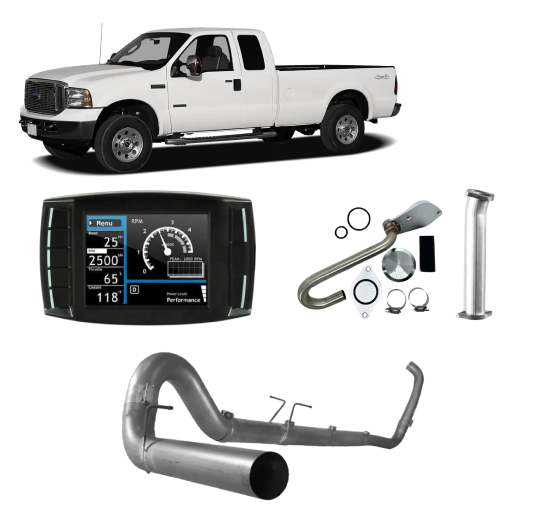

What’s Included

Component Description
H&S Mini Maxx V1 Tuner Legacy preloaded OBD-II tuner with engine monitoring, diagnostic functionality, selectable power settings, and return-to-stock capability.
EGR Valve & Cooler Delete Kit Removes the factory EGR valve and cooler, blocks exhaust-gas recirculation, and includes the required block hardware, gaskets, coolant-routing components, and fasteners.
4-Inch or 5-Inch Exhaust System Select the exhaust diameter that fits the desired sound and flow characteristics. Both are supplied as alternatives rather than together.
Muffler Configuration Choose a straight-pipe configuration or an exhaust with a muffler to reduce overall sound and highway drone.
Installation Hardware Includes the applicable exhaust clamps, connections, EGR hardware, and supporting components for the selected package.

The current product configuration has four exhaust variants: 4-inch or 5-inch, each available with or without a muffler.

Vehicle Compatibility

The Ford 6.0 Powerstroke delete kit is designed for:

  • Years: 2003, 2004, 2005, 2006, 2007
  • Make: Ford
  • Models: F250, F350, F450
  • Series: Super Duty
  • Engine: 6.0L Powerstroke diesel
  • Body style: Pickup
  • Emissions system addressed: EGR
  • Application: Off-road and competition use
  • Cab & Chassis: Not included in this pickup fitment

The 6.0L belongs to an earlier emissions generation than the 6.4L and 6.7L. It has factory EGR but no diesel particulate filter, DEF tank, or SCR system.

How work?

The 2003, 2004, 2005, 2006, 2007 6.0 Powerstroke delete kit physically removes the EGR valve and cooler from the exhaust-gas recirculation path. Block components and coolant-routing hardware replace the factory EGR functionality, helping keep hot exhaust gas and soot out of the intake. The tuner provides engine performance settings and monitoring, while the larger exhaust reduces restrictive back pressure downstream. No DPF or DEF bypass tricks are required because those systems were never factory-installed on this engine.

Features

This package is different from later Powerstroke delete bundles because its core emissions hardware is centered on the EGR system only. The H&S Mini Maxx V1 is a preloaded legacy device, so it does not require a custom file to be built before normal programming, and it can monitor supported engine data.

The exhaust selection also lets owners choose between 4-inch and 5-inch flow paths, while the muffler option changes sound without changing basic fitment. The complete package is designed to combine engine-side EGR hardware, exhaust upgrades, and tuning in one order.

Tuning & Settings

The 2003-2007 6.0 Powerstroke delete kit uses the following confirmed Mini Maxx V1 power settings:

Power Setting Increase Intended Use
Stock 0 HP Factory-level commanded power
Level 1 +40 HP Mild daily-use setting
Level 2 +80 HP Stronger throttle and mid-range performance
Level 3 +120 HP Maximum confirmed power setting

The power level is selected before flashing; this tuner does not provide true SOTF functionality.

Characteristic Expected Change
Maximum Listed Power Gain Up to +120 HP
EGR Recirculation Removed by the physical EGR hardware
Intake Soot Reduced after exhaust-gas recirculation is removed
Exhaust Flow Improved with the selected larger exhaust
Fuel Efficiency May improve depending on tune, driving conditions, load, and engine condition
Throttle Response Can improve with tuning and freer exhaust flow
Reliability Removes the EGR cooler and valve as future failure points; unrelated engine problems remain possible

Optional Add-Ons

  • 4-Inch Exhaust System – balanced upgrade for improved flow with a more moderate exhaust note.
  • 5-Inch Exhaust System – larger pipe diameter for deeper sound and increased exhaust capacity.
  • No Muffler – straight-pipe configuration for maximum exhaust volume.
  • With Muffler – reduces exhaust sound and highway drone.

These are the selectable product-card options; they are not all included at the same time.

Key Benefits

EGR-Focused Hardware – the delete kit for 6.0 Powerstroke removes the factory cooler and valve rather than pretending the truck has later-generation DPF or DEF equipment.

Up to +120 HP – four tuner settings provide stock output plus three performance levels.

Reduced Intake Contamination – eliminating exhaust-gas recirculation helps keep soot out of the intake path.

Flexible Exhaust Setup – choose the pipe size and muffler configuration that best matches the truck’s performance and sound goals.

Complete Package – the EGR components, tuner, exhaust selection, gaskets, hardware, and installation guide are combined into one efficient upgrade.

Installation Information

Installation instructions are provided with the package. A prepared DIY owner can handle the work, but EGR cooler removal involves coolant connections, tight engine-bay access, exhaust hardware, and careful reassembly.

Useful tools include metric sockets and wrenches, extensions, a torque wrench, penetrating oil, coolant drain equipment, hose-clamp pliers, exhaust tools, and safe lifting equipment. The tuner connects through the OBD-II port.

Allow roughly 4–8 hours for a complete installation depending on corrosion, access, previous modifications, and mechanical experience. Tuner programming itself is considerably faster than the mechanical work.

No More Emissions Codes

The 6.0L platform has EGR-related emissions diagnostics rather than DPF or DEF code families. Supported calibration can address EGR-related warnings associated with the modified system, while unrelated engine, fuel, turbo, transmission, wiring, and sensor diagnostics remain active.

Common applicable EGR code families include:

  • EGR Flow / Control: P0401, P0402, P0403, P0404
  • EGR Sensor: P0405, P0406, P0409
  • EGR Cooler / Performance: P2457 where applicable

Exact code coverage depends on the installed calibration and ECM strategy.

FAQ

Its main difference is platform accuracy. The 6.0L is an EGR-era engine, so this package concentrates on the EGR valve, cooler, intake contamination, compatible tuning, and selectable exhaust rather than claiming to remove later DPF or DEF hardware.

The package uses the H&S Mini Maxx V1. It is a legacy preloaded handheld tuner with OBD-II programming, engine monitoring, diagnostics, power-level selection, and return-to-stock functionality. It is discontinued and does not have current manufacturer support.

There are four confirmed settings: 0, +40, +80, and +120 HP. Changing the selected level requires programming through the tuner rather than switching power on the fly.

Removing the EGR cooler and valve eliminates those components from the recirculation system and can reduce soot entering the intake. The exhaust and tune can also improve throttle response and overall performance, although fuel economy and power results depend on the condition and configuration of the truck.

Yes. The package includes an installation guide covering the hardware and tuner setup. Owners with suitable mechanical experience can perform the work themselves, while a diesel shop is recommended when coolant-system, EGR, or exhaust work is unfamiliar.
