DPF Delete Kit w/ SCT BDX Tuner | Ford Powerstroke 6.4L | 2008-2010

DPF Delete Kit w/ SCT BDX Tuner | Ford Powerstroke 6.4L | 2008-2010

Ready to ship
SKU: 21640
For off-road and race use only

Price range: $1,490 through $2,102

Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

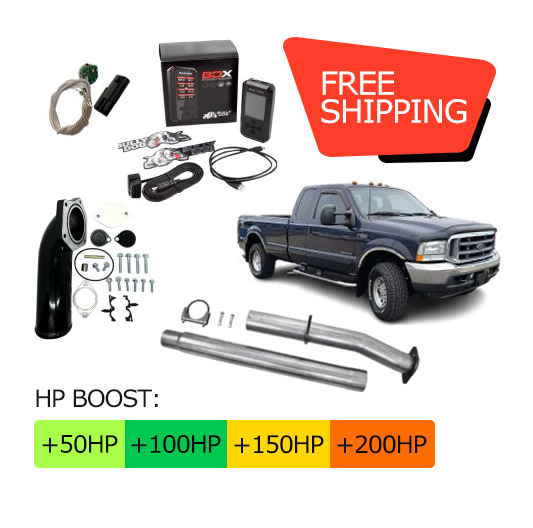

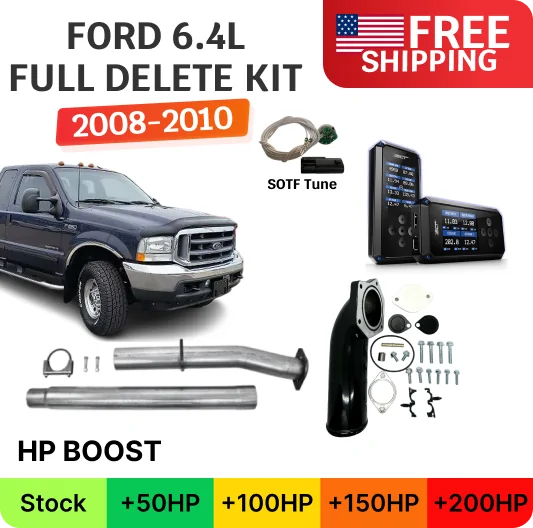

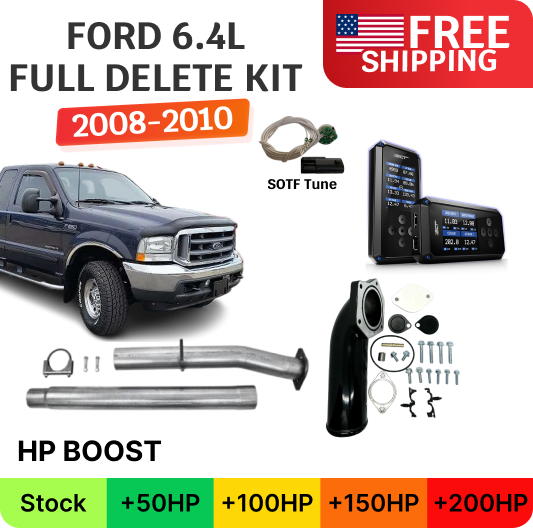

What’s Included

Component Description
SCT BDX Tuner Ford-compatible handheld tuner used to load the vehicle-specific custom tune through the OBD-II port. It also supports engine monitoring, diagnostics, data logging, and SOTF operation with the supplied compatible calibration.
Custom SOTF Tune Custom tuning is prepared for the individual truck using its VIN and BDX serial number. It recalibrates the engine for the modified DPF/EGR configuration and provides selectable power settings.
EGR Delete Kit Complete hardware for removing the factory EGR valve and cooler system, including block-off plates, coolant-routing parts, fittings, gaskets, and installation hardware.
Exhaust Option Choose a DPF/CAT Delete Pipe or a complete 5-inch Exhaust System. Both solutions remove the restrictive factory particulate filter and catalyst section.
Muffler Option Select No Muffler for a louder, more direct exhaust note or With Muffler for reduced sound and cabin drone.
Installation Instructions Instructions are supplied for the mechanical components and tuner setup.

Vehicle Compatibility

The 6.4 Powerstroke delete kit is designed for the second-generation Ford Super Duty platform equipped with the 6.4L Powerstroke diesel engine.

  • Years: 2008, 2009, 2010
  • Models: F-250, F350, F450, F550 Pickup
  • Engine: 6.4L Powerstroke
  • Body style: Pickup truck
  • Not compatible with: Cab & Chassis models
  • Use: Off road and competition applications

This engine uses factory DPF, CAT, and EGR emissions equipment, but does not use DEF or SCR. That distinction is important when comparing this system with later Powerstroke generations.

How Does It Work?

The 2008, 2009, 2010 6.4 Powerstroke delete kit combines the hardware and electronic tuning required to remove the restrictive DPF/CAT section and EGR system. The exhaust option replaces the factory particulate filter path to improve flow, while the EGR Delete Kit removes the valve and cooler so exhaust gas recirculation no longer feeds soot back into the intake.

SCT BDX then loads the matching emissions-off custom tune so the engine can operate with those factory components removed. The result is an All-in-One bundle built around the specific 6.4L platform instead of a universal delete solution.

Features

This 6.4 Powerstroke DPF delete kit uses a custom-tuned SCT BDX rather than a generic preloaded calibration. The tune is prepared from the truck information and tuner serial number, helping ensure the file matches the actual vehicle configuration.

A compatible SOTF setup allows different power levels to be selected without performing a complete ECU reflash each time. The package also offers two different exhaust solutions: retain more of the factory exhaust with the Delete Pipe, or upgrade to a freer-flowing 5-inch system for a deeper sound and lower restriction.

The EGR hardware uses high-quality plates, fittings, coolant-routing components, and durable materials designed for the heat generated by the compound-turbo 6.4L engine.

Tuning & Settings

The delete kit for 6.4 Powerstroke is currently offered with the following SCT BDX custom tuning levels:

Power Setting Added Power Typical Application
Stock 0 HP Conservative factory-level output
Level 1 +50 HP Daily use and lighter duty
Level 2 +100 HP Improved response and moderate performance
Level 3 +150 HP Higher-output off road use
Level 4 +200 HP Maximum listed performance calibration

Actual output depends on engine health, fuel system condition, turbo condition, tire size, drivetrain, other upgrades, and operating conditions.

Characteristic Typical Result
Fuel Economy Approximately 5-15% potential improvement under comparable conditions
EGT Under Load Approximately 100-200°F reduction may be seen after restriction is reduced
Exhaust Flow Freer path after removal of the factory filter and CAT
Throttle Response Typically sharper with the appropriate tune
Towing Response More usable power may improve response under load; factory towing ratings do not increase
Reliability Removes several DPF/EGR-related failure points but does not replace normal engine maintenance

Fuel efficiency and economy gains are not guaranteed and depend heavily on driving style and selected tuning level.

Optional Add-Ons

  • DPF/CAT Delete Pipe – replaces the restrictive factory DPF and catalyst while retaining more of the original exhaust.
  • 5-Inch Exhaust System – larger stainless exhaust upgrade designed for increased flow and a deeper exhaust tone.
  • No Muffler – the least sound-restrictive configuration with the most aggressive exhaust note.
  • With Muffler – reduces exhaust volume while maintaining the upgraded system’s freer-flowing design.

Key Benefits

Custom SCT BDX Tuning – tuning is prepared for the actual vehicle instead of relying on one universal calibration.

Selectable Performance – Stock through +200 HP settings provide different choices for duty and performance use.

No DPF Regeneration – correct tuning and DPF removal eliminate factory particulate-filter regeneration from the modified system.

No EGR Recirculation – removing the EGR valve and cooler prevents soot-filled exhaust gas from being routed back through the intake.

Complete Hardware Package – the 6.4 Powerstroke full delete kit includes the tuner, EGR components, selected pipe or exhaust, and required supporting hardware in one package.

Installation Information

Installation instructions are included. A mechanically experienced owner can perform the work with a metric socket and wrench set, extensions, torque wrench, penetrating oil, coolant drain equipment, exhaust sensor tools, and a vehicle lift or properly rated jack stands.

Tune the truck successfully before removing the DPF or EGR hardware. The SCT BDX custom file requires the correct VIN and tuner serial number. Current DieselBro processing is typically 2-5 business days for custom tuning, so the tune should be available before mechanical disassembly begins.

Once the tune is ready, the mechanical installation generally takes around 4-6 hours for an experienced installer and may take longer on a truck with rusted exhaust hardware. The EGR cooler area and coolant system require more work than a simple bolt-on exhaust upgrade.

Professional installation is recommended if ECU flashing, coolant work, or removal of seized factory exhaust components is outside the installer’s experience.

No More Emissions Codes

Correct tuning prevents supported warnings caused specifically by the removed DPF and EGR equipment. It does not disable normal diagnostics for unrelated fuel, air, boost, turbocharger, wiring, cooling, or engine faults.

Common DPF/EGR-related codes that may be addressed by the correct configuration include:

  • P0401 – EGR Flow Insufficient
  • P0402 – EGR Flow Excessive
  • P0404 – EGR Control Range/Performance
  • P0405 / P0406 – EGR Sensor Circuit
  • P0470-P0474 – Exhaust Pressure Sensor faults
  • P2002 – DPF Efficiency Below Threshold
  • P242F – DPF Ash Accumulation
  • P2452 / P2453 – DPF Differential Pressure Sensor
  • P2458 / P2459 – DPF Regeneration Duration/Frequency
  • P2463 – DPF Soot Accumulation

There are no DEF-related codes to delete on this platform, because the 2008-2010 Ford 6.4L Powerstroke was not equipped with a DEF/SCR system.

FAQ

This package combines a vehicle-specific SCT BDX tune, EGR removal hardware, and the selected exhaust configuration into one complete solution. It is built specifically to fit 2008-2010 SuperDuty Pickup models rather than relying on parts from another Powerstroke generation.

SCT BDX supports custom Ford tuning, SOTF operation with the correct switch and file, live engine monitoring, diagnostics, and data logging. It is VIN-specific, so the tuning file is prepared for the individual truck rather than reused across multiple vehicles.

Yes. The current product configuration offers Stock, +50, +100, +150, and +200 HP tune settings. The actual gain at the wheels depends on the condition of the engine, compound turbos, fuel system, transmission, and other performance parts.

Reduced exhaust restriction and elimination of DPF regeneration can improve fuel efficiency under comparable operating conditions. Approximately 5-15% is a reasonable potential range, but aggressive tunes, towing, idling, larger tires, or heavy throttle use can offset those ga

The additional torque and freer exhaust system can improve throttle response and the way the truck maintains speed under load. Use a conservative tune for towing and continue to observe the original Ford payload, axle, GCWR, and trailer limits.

Yes, if you have appropriate mechanical skills and equipment. The exhaust portion is relatively straightforward, but EGR cooler removal, coolant work, and electronic tuning add complexity. A diesel shop is recommended when access, corrosion, or ECU programming makes the installation uncertain.
