SCT BDX Delete Tuner | Ford Powerstroke 6.7L | 2011-2016

SCT BDX Delete Tuner | Ford Powerstroke 6.7L | 2011-2016

Ready to ship
SKU: 22552
For off-road and race use only

Original price was: $1,049.Current price is: $949.

Add to WishlistRemove from Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

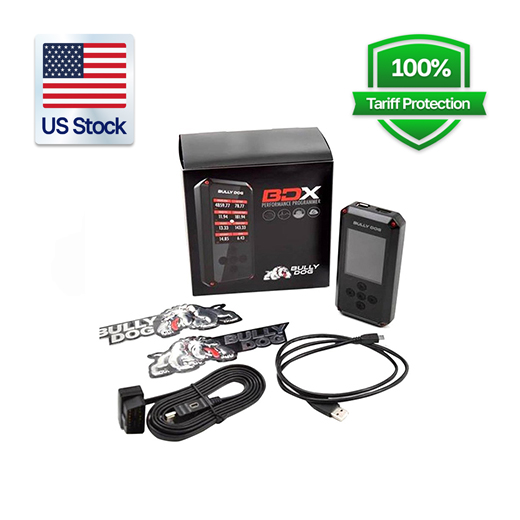

What’s Included

Component Description
SCT BDX Handheld Tuner OBD-II programmer for installing engine calibrations, monitoring supported parameters, and reading or clearing diagnostic trouble codes.
Custom Tune Files Vehicle-specific software calibrations prepared using the truck’s VIN, tuner serial number, and required ECU/TCU information.
OBD-II Connection Cable Connects the programmer to the truck’s diagnostic port for ECU communication and flashing.
USB Cable Connects the tuner to a Windows computer for transferring custom files and managing device software.
Installation Instructions Guide covering file preparation, transfer, vehicle programming, and essential precautions.

Custom calibration files are included in the tuning package but require vehicle-specific preparation before installation. The standalone tuner does not include exhaust pipes, EGR removal components, or CCV hardware.

Vehicle Compatibility

The SCT BDX tuner 6.7 Powerstroke supports the following Ford Super Duty diesel applications:

  • Years: 2011, 2012, 2013, 2014, 2015, 2016.
  • Make: Ford.
  • Models: F-250 and F-350 Super Duty Pickup.
  • Engine: 6.7L V8 Powerstroke diesel.
  • Body style: Pickup.
  • Year selection: 2011–2014 or 2015–2016.
  • Factory emissions systems: DPF, DEF/SCR, and EGR.
  • Application: Off-road and competition use only.
  • Not compatible: Other engine displacements or model years outside this listing.

The correct calibration must match the vehicle’s model year, ECU strategy, transmission configuration, and installed hardware.

How work?

The SCT BDX tuner 6.7 Powerstroke 2011-2016 connects to the truck’s OBD-II port and flashes a custom engine calibration into the ECU. Depending on the selected tune, the software adjusts supported fuel delivery, boost response, torque management, and engine operating strategies. Compatible off-road calibrations support appropriately modified DPF, DEF, and EGR systems, while optional performance settings enhance horsepower and driving response. The programmer also provides diagnostic functions, vehicle monitoring, and a return-to-stock procedure.

Features

The 2011-2016 Ford 6.7 Powerstroke tuner DPF delete uses custom files designed for the truck’s specific electronic configuration rather than generic preloaded software. Its compact handheld design supports diagnostic monitoring, calibration storage, and ECU programming through one device. Supported Pickup calibrations offer multiple power levels and SOTF capability when the required switch is installed. These features help unlock the engine’s performance potential while allowing the owner to select an appropriate calibration.

Tuning & Settings

Available power levels differ between the two year ranges offered on this product page. The following figures represent supported Pickup calibration levels.

Tune Level 2011–2014 Pickup 2015–2016 Pickup
Level 1 +30 HP +30 HP
Level 2 +60 HP +60 HP
Level 3 +90 HP +100 HP
Level 4 +120 HP +150 HP
Level 5 +150 HP +200 HP

These horsepower increases represent calibration ratings, not guaranteed measured gains. Actual performance depends on engine condition, supporting modifications, and operating conditions.

SOTF functionality is supported with compatible custom files and an appropriate switch. The switch is not included.

Parameter Details
Transmission Ford 6R140 TorqShift automatic
TCM tuning Supported for applicable Pickup calibrations
Transmission calibration Prepared for the supported transmission configuration
Shift response May be adjusted to coordinate with engine torque delivery
Required information VIN, ECU strategy, and TCU strategy
Additional horsepower No separate HP increase attributed to transmission tuning

Transmission tuning coordinates shift behavior and torque management with the engine calibration. It does not independently increase engine horsepower.

Feature Capability
Fuel economy Efficiency may improve under suitable driving conditions; no fixed MPG increase is guaranteed
SOTF Supported on compatible Pickup calibrations with required switch hardware
Live monitoring Displays supported engine operating parameters
Diagnostics Reads and clears supported diagnostic trouble codes
Stock restoration Return-to-stock procedure available through the programmer
Custom file delivery Vehicle-specific files prepared after receiving required information
Vehicle licensing Device is associated with the programmed vehicle until properly returned to stock

Key Benefits

Year-Specific Performance Tuning

Access five power levels matched to your truck’s generation, with up to +150 HP for 2011–2014 models or +200 HP for 2015–2016 models.

Vehicle-Specific Custom Calibrations

Tune files are prepared using the VIN, ECU strategy, transmission information, and installed components for accurate vehicle matching.

SOTF Compatibility

Supported Pickup configurations allow power-level switching with compatible software and the required external switch.

Built-In Diagnostics and Monitoring

Read and clear supported fault codes while monitoring engine parameters directly through the SCT BDX programmer.

Return-to-Stock Capability

Restore the original compatible factory calibration through the device’s programming menu when returning the vehicle to its stock configuration.

Installation Information

The delete tuner for 6.7 Powerstroke 2011-2016 includes instructions for preparing and installing custom engine software.

A Windows laptop, USB connection, stable vehicle battery voltage, and access to the OBD-II port are required. Before requesting files, provide the VIN, tuner serial number, ECU/TCU strategy information, and vehicle modifications.

Custom file preparation generally takes 2-5 business days after the required information is received. Once available, transfer the files to the device and install the appropriate calibration. ECU programming typically takes approximately 30–60 minutes.

Do not flash generic preloaded tunes before receiving the correct custom file. Resolve existing diagnostic faults before programming, maintain stable battery voltage, and never disconnect the device during flashing. Separate mechanical modifications require additional tools, time, and installation experience.

FAQ

Yes. The SCT BDX tuner for 6.7 powerstroke DPF delete reads and clears supported diagnostic trouble codes. However, clearing codes does not repair mechanical faults or guarantee that warnings will not return.

Removing the DPF without compatible calibration can trigger dashboard warnings, diagnostic errors, and regeneration-related problems. The ECU must use software compatible with the vehicle’s actual hardware configuration.

Five power levels are supported for compatible Pickup calibrations. The 2011–2014 range offers +30, +60, +90, +120, and +150 HP, while 2015–2016 models offer +30, +60, +100, +150, and +200 HP.

Yes. The device supports a return-to-stock procedure for restoring the original compatible factory calibration. Factory emissions hardware must also be restored where required; simply disconnecting the programmer does not reverse tuning.

ECU programming generally requires 30-60 minutes after the custom calibration is available. File preparation typically takes 2-5 business days once all required vehicle information has been submitted.

Contact our support team for installation guidance and information about available service recommendations. Professional assistance is recommended if you need help with ECU programming or mechanical modifications.
